A directional speaker is a special kind of speaker that sends sound in a narrow, focused line—just like a flashlight shines light in one direction.

Normal speakers spread sound in all directions, like a circle. This is good for parties or big rooms, but not when you want sound to stay in one spot. A directional speaker uses advanced sound technology to aim sound only where it’s needed. If you're not in that spot, you won’t hear much at all.

It works like a sound "spotlight." Only people standing right in front of it can clearly hear the voice or music. People outside the beam hear little to nothing.In short, directional speakers are great for places where sound needs to be clear in one area but quiet in others. They reduce noise, protect privacy, and make sound more focused.




To understand how directional speakers work, let’s first look at how regular speakers work.

How Do Traditional Speakers Work?

Normal speakers make sound from electricity. Inside the speaker, a wire coil gets power from sound signals. This coil sits in a strong magnet.

When the signal changes, the coil moves back and forth. It pushes a thin surface called a diaphragm. The diaphragm moves the air. This makes sound waves that we can hear.

A speaker has three main parts: the coil, the magnet, and the diaphragm. A big diaphragm pushes more air and makes deeper sound (bass). But it’s not as good for high sounds.

Regular speakers send sound in all directions. That’s good for big rooms. But it also means sound can mix and make noise. Low sounds go far. High sounds don’t go as far and fade faster.


How Do Directional Speakers Work?

Directional speakers use advanced sound technology to control exactly where sound goes. Here's how it works, based on three main methods:

1. Ultrasonic Technology

Directional speakers use ultrasonic waves—these are super high-frequency sounds that people can't hear. When ultrasonic waves carry a normal sound (like a voice or music), the sound only forms clearly in the direction the speaker points.

① In front of the speaker: You hear the sound clearly.
② Off to the side: The sound is very weak or silent.

This is because ultrasonic waves don’t spread like regular sound—they stay in a narrow beam.

2. Parametric Array Technology

This technology uses interference and phase control to focus sound.

① It sends out two or more ultrasonic waves.
② These waves mix together in the air.
③ As they travel, they slowly change into sound you can hear—but only in one direction.

This process is called a parametric array, and it helps create a strong, focused sound zone with almost no noise around it.

3. Phased Array Technology

Some directional speakers use a method like phased array radar.

① The speaker sends out many tiny sound signals.
② These signals are adjusted with phase shifts (small timing changes).
③ The signals interfere and combine, building strong sound in one direction and canceling it in others.

This allows the sound beam to be even more focused, just like how radar beams are aimed in one direction.

With directional speakers, sound only goes where it’s needed—no noise, no distractions. They help keep spaces quiet, while still sharing sound in the right spot.

1.The sound goes only to the people who need to hear it.
2.It keeps the place quiet and reduces noise.
3.It gives more privacy in places like ATMs or meetings.
4.The message is clearer because there is less background sound.
5.It helps focus people’s attention on a product or display.


1.The sound only covers a small area.
2.It costs more than regular speakers.
3.It must be set up in the right direction to work well.
4.The volume must stay low to keep the sound clear.
5.It is not good for big crowds or large spaces.


Directional speakers help send sound only where it’s needed. This makes them perfect for places that need clear, quiet, and focused sound. Let’s look at some common areas where directional speakers are used:

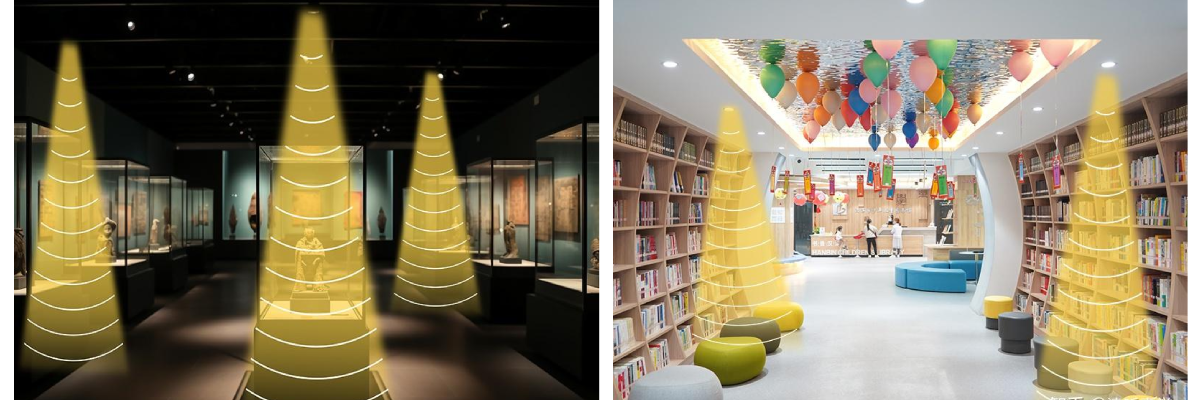

1. Museums, Exhibitions, Art Galleries, Showrooms

In cultural spaces, directional speakers can guide visitors with voice messages only when they are standing in front of a specific display. This creates a more immersive experience, where each person hears the right content at the right time—without mixing sounds from other exhibits. It also reduces background noise and confusion.

2. Digital Signage, Ad Kiosks, LED Displays

In public areas, digital ads often include sound. But if the sound is too loud or goes everywhere, it can annoy people nearby. Directional speakers aim the sound directly at the target audience, making the message clearer and more engaging—while keeping the space quiet and comfortable.

3. Shopping Malls, Retail Stores, Product Counters

In retail, these speakers can deliver promotional messages or product introductions to people standing near a certain shelf or display. This helps increase customer attention and sales, without disturbing the rest of the store.

4. Self-Service Kiosks, Libraries, Schools

At self-service machines or in quiet places like libraries, directional speakers provide clear audio instructions to one user at a time. This protects the quiet environment, especially where many people need to focus or study. In schools, it can help deliver private guidance without bothering others.

5. Video Conferences, Government Rooms

In meetings, directional speakers can make sure that sound is only sent to the people who need to hear it, such as around a conference table. This improves privacy and clarity, especially in open offices or multipurpose rooms. It also reduces sound leaks that might distract others nearby.


A directional speaker is a special kind of speaker that sends sound in a straight line, like a flashlight sends light. Unlike regular speakers that spread sound everywhere, it focuses sound in one direction. Only people standing in that spot can hear clearly. This helps reduce noise, protect privacy, and improve the listening experience in places like museums, stores, and offices.
