Introduction
The XC-9000 system is a fully digital network PA system based on the TCP/IP protocol. By leveraging the TCP/IP protocol, the system ensures the correct and efficient transmission of all data packets. Not only can it utilize existing computer networks, such as LANs or the Internet, to transmit broadcast signals, but also it can also be deployed on a dedicated broadcasting network.
The server is highly powerful. Even when connected with a large number of terminals, it can simultaneously handle the same task smoothly. A single-server system can support up to 3000 terminals and allows for server cascading. There are no limitations on the concurrent broadcast channels, achieving true full digital broadcasting.
System Features
Flexible PA System Design
The PA system architecture is simple, including service management software, network microphones, network amplifiers, network speakers, and other devices.All equipment is connected via the TCP/IP intranet protocol, allowing for flexible configuration and easy management of the system, with free control over broadcast content, network devices, and regions through the network.
Comprehensive Audio Management

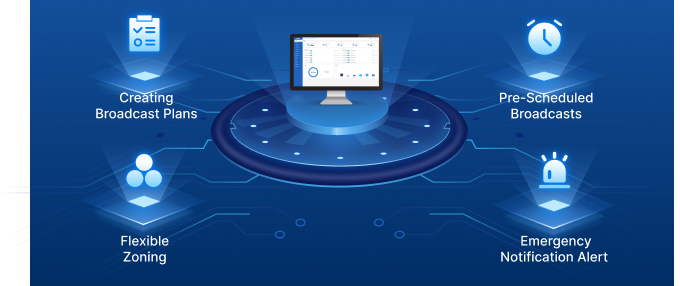

The audio management software includes built-in features for creating broadcast plans, flexible zoning, and pre-scheduled broadcasts.It supports 24-hour programming, allowing for changing settings during all day.
Versatile Audio Source Support
The system supports various forms of audio sources for sending notifications like live speech and BGM playback. Audio sources can come from digital musical apps, CD/DVD players, microphones, etc. In addition, the system provides diverse functions of supporting various broadcasting features such as scheduled broadcasting, zoned broadcasting, and emergency broadcasting.

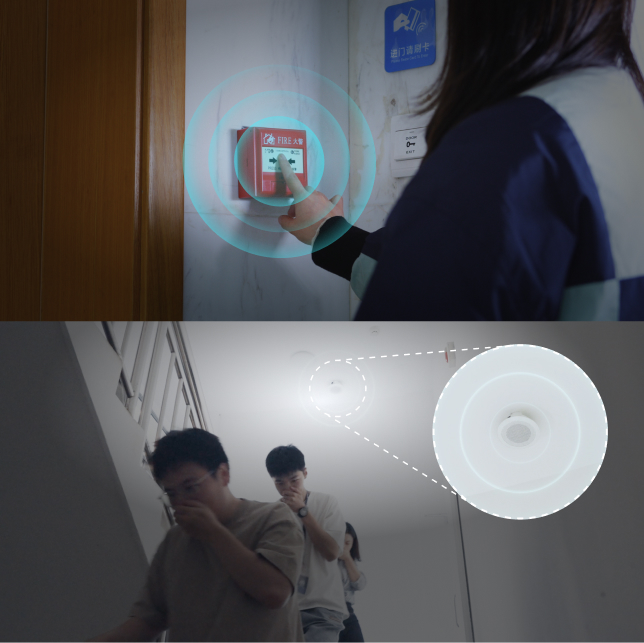

Fire Alarm System Integration

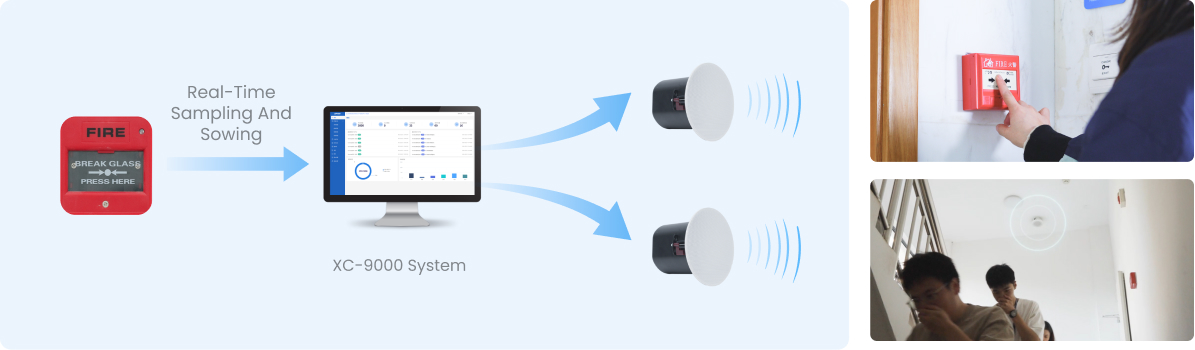

The system has a fire alarm function and can be integrated into a fire alarm system. When the alarm central unit receives the alarming signals, the cable will transmit the signal to devices, which triggers the XC-9000, sending out signals to speakers.
Users could choose to preset settings to activate full-area or zoned alarms in emergencies. The alarm voices come in multiple forms and could be edited catering to needs. For example, users can change language settings, upload and edit their audio sources according to exact requirements, such as intruding alarms, fire alarms or air aid alarms, etc.
Remote Fault Detection and Monitoring
The system can perform automatic fault detection, capable of monitoring real-time status of devices and displaying the online status and fault status of all network terminals within the management software. Taking cross-city projects like banks as an example, it is convenient to remotely check whether the device is receiving the intercom or broadcast signals, the online/offline and broken/intact status of all the devices through backend. For constantly checking the steadiness of the system, scheduled detection is also feasible.
App Control for System Operations
The system enables mobile app login and usage, allowing users to initiate broadcasts and other operations to authorized terminals through the server software, ensuring a convenient and streamlined experience.
Integrated SIP Compatibility
The system not only allows SIP phones to log in, but also can be connected to third-party SIP server or IPPBX, which establishes a completely integrated and compatible communication system through seamless integration into existing systems.
Open SDK
When large project like smart park occurs, the system provides an open SDK integrated into third-party application platforms.
System Infrastructure
Main Functions
Scheduled Playback

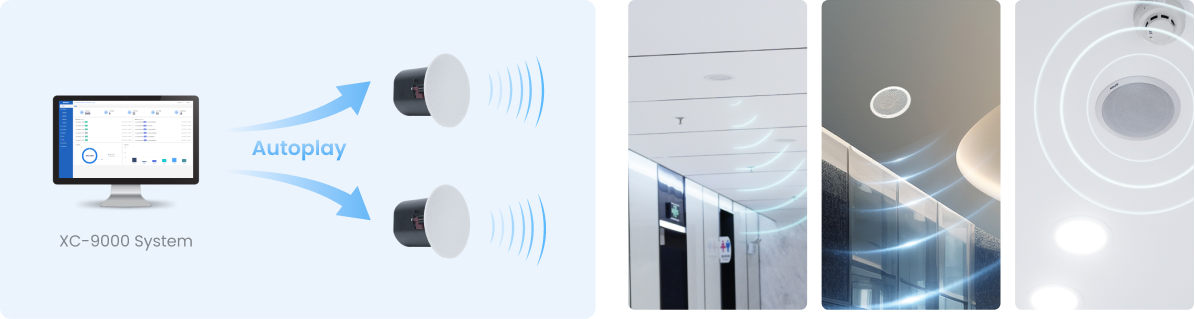

The system is able to automatically broadcast according to the scheduled tasks as long as users upload the audio file for each time period of the day to the server and create a playback schedule.
Zone Broadcasting
The system can arbitrarily divide a few network devices into different zones to play specified audio programs or send out announcements to any designated area. The volume of each device can be remotely adjusted.
Real-time Broadcasting
The system can capture and broadcast radio programs or other external audio sources in real-time, and at the same time broadcast them in sync.
Fire Alarm Integration
The system can be integrated with the fire alarm system for control. When a fire alarm signal is triggered, it automatically activates the emergency broadcast function and supports adjacent floor alarms. It also allows for manual emergency broadcasting by clicking a single button.
SIP Phone Integration
The system can be integrated with SIP servers, allowing live speech of voice broadcasting via SIP phones to send announcements anytime and anywhere.
CCTV Integration

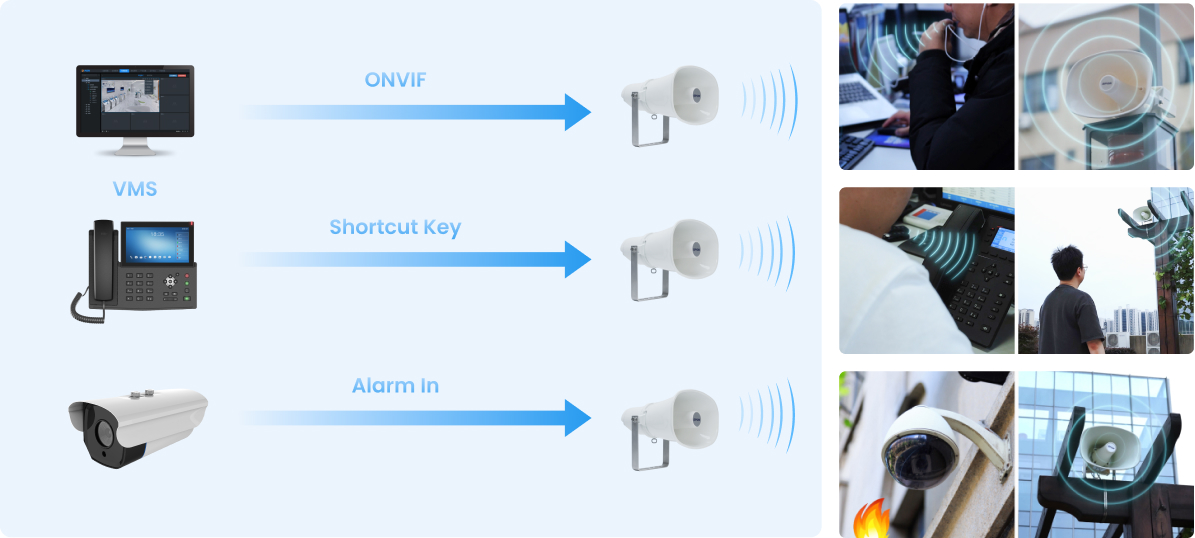

The digital devices such as IP POE Speakers adopts the international standard ONVIF protocol, which enables their voices to be broadcast via VMS platforms. The terminals can also be integrated with CCTV systems for synchronized broadcast.
Main Products
1、Audio Management Software XC-9000
B/S architecture, supports cross-platform applications
Covers traditional broadcasting system functions, allowing for partition management
Unified management of terminals within the system, viewing work status, and batch volume adjustment, etc.
Supports building multi-level server architectures, deploying management according to user geographical regions
Provides SDK development packages for secondary development and integration with other system platforms
2、Network Paging Console XC-9038N
Power: DC12V/1.5A
Display: 4-inch touchscreen, resolution 480*480
Communication Protocols: TCP/IP, UDP, SIP
Signal-to-Noise Ratio: >80dB
Frequency Response: 100Hz~16KHz
Operating Temperature: 0~45℃
Dimensions: 144*144*34.1mm
3、Network Paging Console XC-9037N
Power Supply: DC12V/1.5A
Display: 4-inch touchscreen, resolution 480*480
Communication Protocols: TCP/IP, UDP, SIP
Signal-to-Noise Ratio: >80dB
Frequency Response: 100Hz~16KHz
Operating Temperature: 0～45℃
Dimensions: 144*144*34.1mm

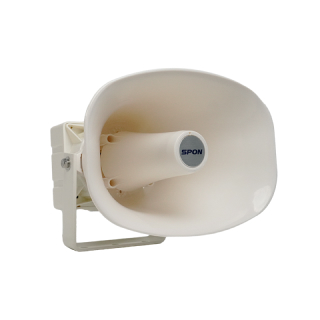

4、Network Horn Speaker GEN-6391A03
Power Supply: DC24V/2.7A or POE
Communication Protocol: TCP/IP, UDP, SIP, ONVIF
Signal-to-Noise Ratio: >80dB
Frequency Response: 100Hz~18KHz
Intercom: Supported, Built-in Microphone
Operating Temperature: -20～50℃
Dimensions: 283.1*224.3*269mm

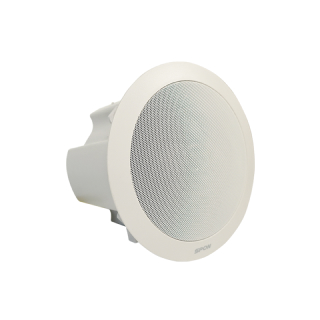

5、Network Ceiling Speaker GEN-6211A03
Power Supply: DC 24V/1A or POE
Communication Protocols: TCP/IP, UDP, SIP, ONVIF
Signal-to-Noise Ratio: >80dB
Frequency Response: 100Hz~18KHz
Operating Temperature: -20 to 50°C
Dimensions: φ213 x 165mm
6、Network Wall Mount Speaker GEN-6011A03
Power Supply: DC24V/1A or POE
Communication Protocol: TCP/IP, UDP, SIP, ONVIF
Signal-to-Noise Ratio: >80dB
Frequency Response: 100Hz~18KHz
Operating Temperature: -20～50℃
Dimensions: 193x151.5x292mm
7、Network Column Speaker GEN-6191A03
Power Supply: DC24V/1A or POE
Communication Protocol: TCP/IP, UDP, SIP
Signal-to-Noise Ratio: >90dB
Frequency Response: 45Hz~18KHz
Operating Temperature: -10～55℃
Dimensions: 296x140x130mm
8、Network Audio Bridge GEN-3101A01
Power Supply: POE
Communication Protocol: TCP/IP, UDP, SIP
Signal-to-Noise Ratio: >85dB
Frequency Response: 50Hz~20KHz
Operating Temperature: -10～55℃
Dimensions: 126x66x27mm

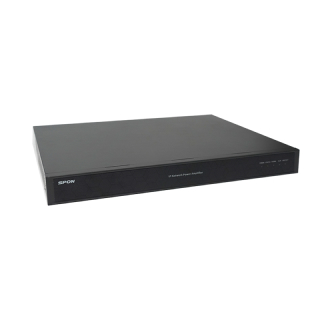

9、Network Digital Amplifier XC-9508P
Power Supply: AC100V～240V, 50/60Hz
Power: 130W, 260W, 360W, 500W
Communication Protocol: TCP/IP, UDP, SIP
Signal-to-Noise Ratio: >80dB
Frequency Response: 60Hz~18KHz
Operating Temperature: -10～50℃
Dimensions: 440x300x44mm

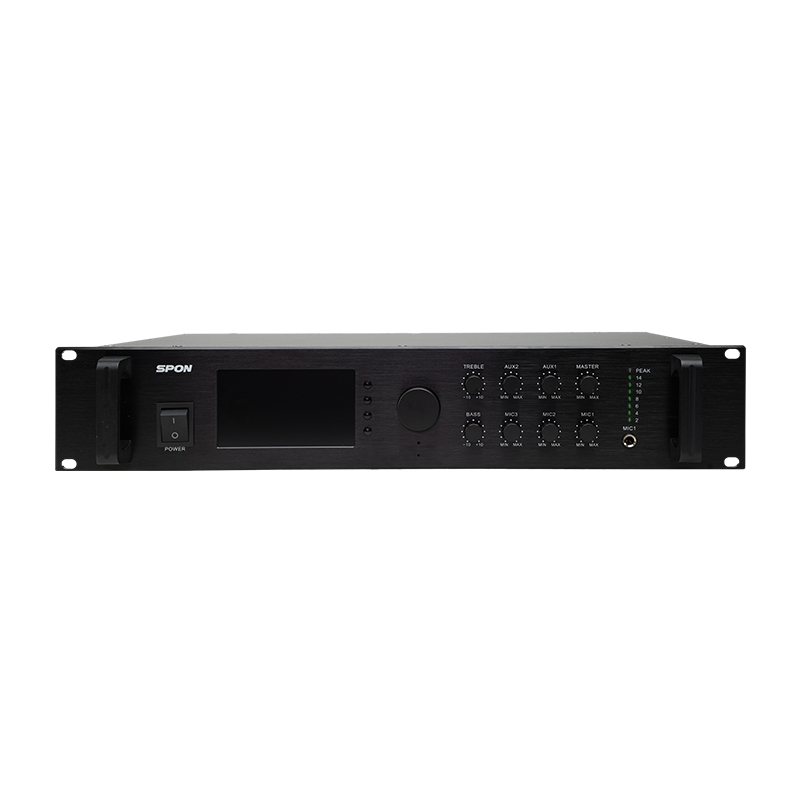

10、Zone Mixing Digital Amplifier NBS-2301
Power Supply：AC 220V, 50Hz
Power：130W，260W，360W，550W，700W
Communication Protocol：HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Signal-to-Noise Ratio：
Mic Input 01: ≥65dB,
Mic Input 02/03: ≥80dB,
Aux Input 01/02: ≥82dB
Frequency Response：
Mic Input 01: 80Hz~14kHz
Mic Input 02/03: 60Hz~16kHz
Aux Input 01/02: 60Hz~16kHz
Operating Temperature：
10℃~+50℃ (14℉~122℉)
Dimensions：483x430x88mm

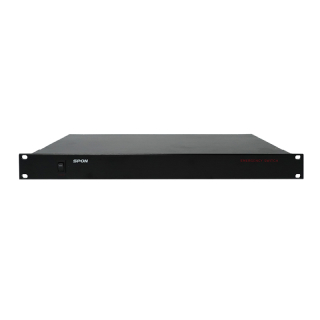

11、IP Interface Unit NAC-5003
Power Supply: AC100V～240V, 50/60Hz
Communication Protocol: TCP/IP, UDP
Interfaces: 1 Ethernet port, 32 alarm inputs, 8 alarm outputs
Operating Temperature: -10～50℃
Dimensions: 483x259x44mm
Solution For School
Flexible Zoning Broadcast:
The fully network terminals can realize flexible zoning options, allowing for broadcasting notifications to different zones or individual terminals（devices).
School Bell System :
It provides school bell system at the beginning/ending of the class. Multiple scenarios can be designed, including different scheduled broadcast tasks according to summer/winter timetable.
Fire Alarm Integration
It supports integration with fire alarm systems, allowing fire alarm signals to be integrated into the PA system.
Classroom Audio Amplification
Terminals support daily applications in classroom scenes. They can be connected to projectors or interactive whiteboard for audio amplification.
Smart Street Lamp/Security Pole
Support SIP Protocol :
Integrated SIP protocol for seamless integration with network communication systems.
VMS Platforms Integration :
Integrated ONVIF protocol for integration with VMS platforms.
Third-Party Integration :
Built in HTTP API for integration with third party platforms.
Voice Alarm Triggering :
Built in alarm input interface for triggering voice alarms with cameras.
Solution For Hotel
Zone Control by Floor :
The system offers full network settings, dividing zones relying on different floors and control over each zone separately.
Fire Alarm Integration:
The system can be integrated with fire alarm system, enabling integration of fire alarm signals into the broadcasting system.
Scheduled Broadcasting:
It supports programmable scheduled broadcasting, allowing flexible arrangements according to various needs.
Emergency Broadcasting:
It supports emergency broadcasting for the entire area, enabling one-click emergency communication.
Solution For Factory
Zone Broadcasting:
It allows broadcasting to any zone, guaranteeing no interference between different areas.
Alarm Triggering:
Terminals have various kinds of interfaces, enabling to trigger alarms when connected with cameras.
All Network Devices:
Deployment of fully network devices significantly reduces the difficulty of operating such as checking devices on dangerous sites, and thus protecting people and property.
The deployment of all network devices greatly reduces the difficulty of operation and maintenance management.
Integrated SIP Phones:
The system can be integrated with SIP phone and broadcast notifications using SIP phones at any time and anywhere. Two-way audio talkback between SIP phones and IP POE Speakers makes it easy for checking devices sitting in office or other workplaces.
