XC-9603
IP Paging Amp Adapter
  • Circuit Fault Detection
  • Professional Recording
  • Adaptive Volume Control
  • User-Friendly Configuration
Request Quote
Datasheet
DESCRIPTION PARAMETER FAQS Download
Home ProductPA SystemAmplifier

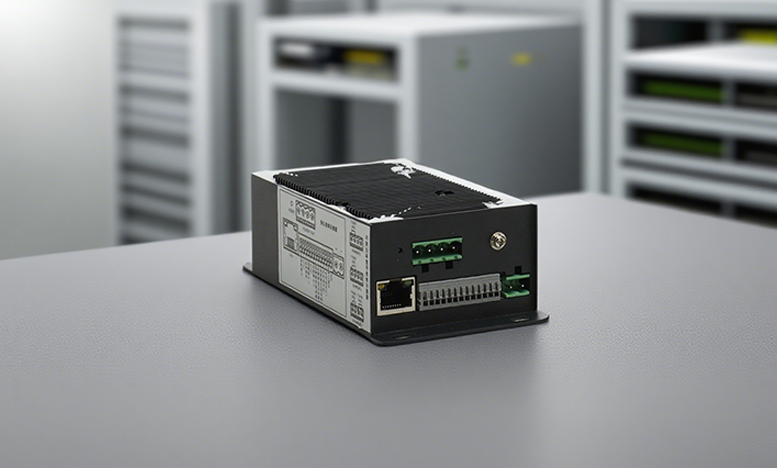

Flexible IP Paging Adapter with Built-in Amplifier
The XC-9603 combines an IP paging adapter with a powerful amplifier, offering a compact and modular design for easy installation. It supports audio input/output, making it ideal for upgrading traditional PA systems into modern IP-based broadcasting solutions.
Smart Broadcast Features with Auto Volume Control
Equipped with advanced broadcast functions, the XC-9603 supports scheduled bells, real-time announcements, and offline tasks. Its adaptive ambient noise detection automatically adjusts speaker volume for clear communication in different environments.
Reliable Integration & Easy Management
With standard Ethernet connectivity, this IP paging adapter integrates seamlessly into any network. Users can configure parameters, priorities, and audio settings via a simple web browser. The device can detect potential speaker malfunctions and display the status on the server software, ensuring quick identification and rectification.
PARAMETER
Parameter
Specification
Model No.
XC-9603P06
Power Supply
DC 24V/2.7A
Network Protocol
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Built-In Amplifier
60W/4Ω
S/N (Signal-to-Noise) Ratio
≥86dB
Audio Sampling & Bit Rate
8kHz-44.1kHz, 16bit, 8kbps-320kbps
THD (Total Harmonic Distortion)
≤0.3% at 1kHz
Frequency Response
50Hz-20kHz
Interface
1×RJ45 Ethernet Port, 1×Line Input, 1×Line Output, 2×Relay Input, 1×Relay Output, 1×Status Indicator LED Output, 1×Mic Input, 2×Speaker Output, 1×Power Input
Dimensions
140×71×43mm
Weight
0.4kg
Standard Accessories
1×2-Pin Terminal Block Connector, 1×4-Pin Terminal Block Connector, 1×Installation Manual
Optional Accessories
DC 24V/2.7A Power Adapter IEC C13 Power Cord (US/EU/UK/AU)
FAQS
Q1: What is the power output of the XC-9603P06 IP Paging Adapter?
The XC-9603P06 is equipped with a 60-watt class-D digital amplifier, capable of driving up to two 30-watt 8-ohm passive analog speakers.
Q2: Can this adapter connect to external amplifiers?
Yes, the adapter has a line output with 600-ohm impedance, allowing it to connect to external analog amplifiers.
Q3: Is the XC-9603P06 compatible with other VoIP systems?
The adapter is fully compliant with third-party SIP endpoints and is compatible with most mainstream on-premise and cloud/hosted VoIP telephone systems.
