Speaker

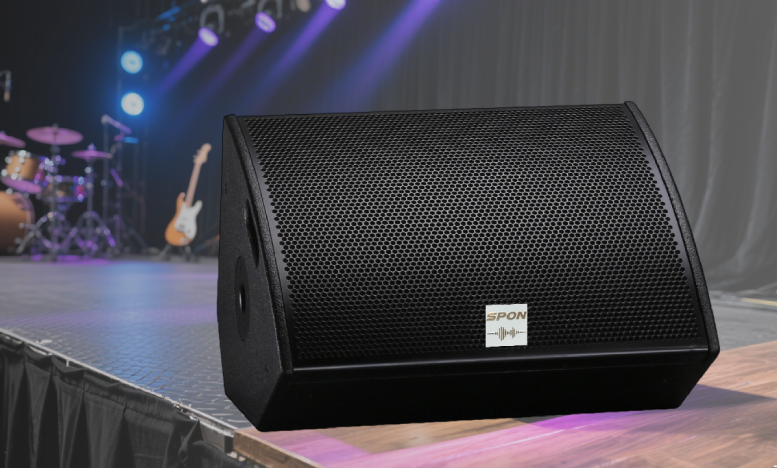

Stage monitoring speaker
Stage monitoring speaker
SAP-MX12A
Stage monitoring speaker
  • Clear audio
  • Multiple mounting options
  • Equipped with woofers and tweeters
Request Quote
Datasheet
DESCRIPTION PARAMETER Download
Home ProductProfessional audio systemSpeaker
Coaxial Design
Engineered for precision and power, the 12-inch Coaxial Full-Range Speaker delivers uncompromising audio clarity across the spectrum. Its 2-way coaxial design, integrating a 12" woofer (72mm voice coil) and a 3" high-frequency driver (75mm voice coil), ensures seamless phase coherence and a naturally balanced sound.
Powerful Performance
With a frequency response of 83Hz–20kHz, 400W RMS power handling (up to 1600W peak), and a sensitivity of 98 dB, this full-range loudspeaker is built to perform in demanding professional environments—whether as a stage monitoring speaker, a front-of-house reinforcement, or an installed system in performance venues.
Integration & Quality
For flexible integration, the cabinet is equipped with dual Speakon NL4MP connectors and 11x M8 mounting points.The wide 100° HF coverage guarantees even sound distribution, while the robust high-density birch plywood enclosure with eco-friendly fire-retardant coating provides both durability and a premium finish that blends into high-end audio setups.
PARAMETER
Parameter
Specification
Rated Power Output
400W
Max Power Output
1600W
Rated Impedance
8Ω
Speaker Type
Built-In Two-Way Full Frequency
Frequency Response
83Hz-20kHz
Sensitivity
98dB
Cover Range
100°HF Coverage
Max SPL
130dB
Mounting Method
Bracket,Suspension, Wall Mount
Product Dimensions
560x466x355(mm)
Product Weight
19.85Kg
Documents Download
