Background

The SPON conference system for courtrooms is designed to deliver clear, stable, and accurate sound during trials. It helps everyone in the courtroom — judges, lawyers, parties involved, and the public — clearly hear all spoken content, such as arguments, witness statements, evidence presentations, and verdicts. This system supports civil, criminal, and administrative cases and works well in both small and large courtrooms.

Requirements

The courtroom conferencing system required clear functionality and excellent technical performance. It needed to support high-quality sound reinforcement, record audio and archive it for legal records, and work with the video conferencing system to enable remote audio transmission. The system covered the full speech range, with a frequency response range of 80Hz to 16kHz and a signal-to-noise ratio of at least 70dB to ensure clear sound. The microphone had a high sensitivity (-36dB ±2dB) to clearly pick up speech regardless of whether the speaker was near or far. The system was designed to resist interference, operate stably even for long meetings, and be easy for court staff to operate.

Advantages

Clear and Consistent Audio

Ensures everyone in the courtroom hears clearly — whether it’s the judge, a lawyer, or a witness speaking.

Noise-Free Environment

Filters out echo and background noise. Voices sound natural and smooth, helping people understand better.

Faster Communication

Ensures everyone in the courtroom hears clearly — whether it’s the judge, a lawyer, or a witness speaking.

High-Quality Recording

Provides clear audio signals for court records, reducing mistakes caused by unclear recordings.

Remote Access Support

Easily connects with video conference systems for remote trials, saving time and resources.

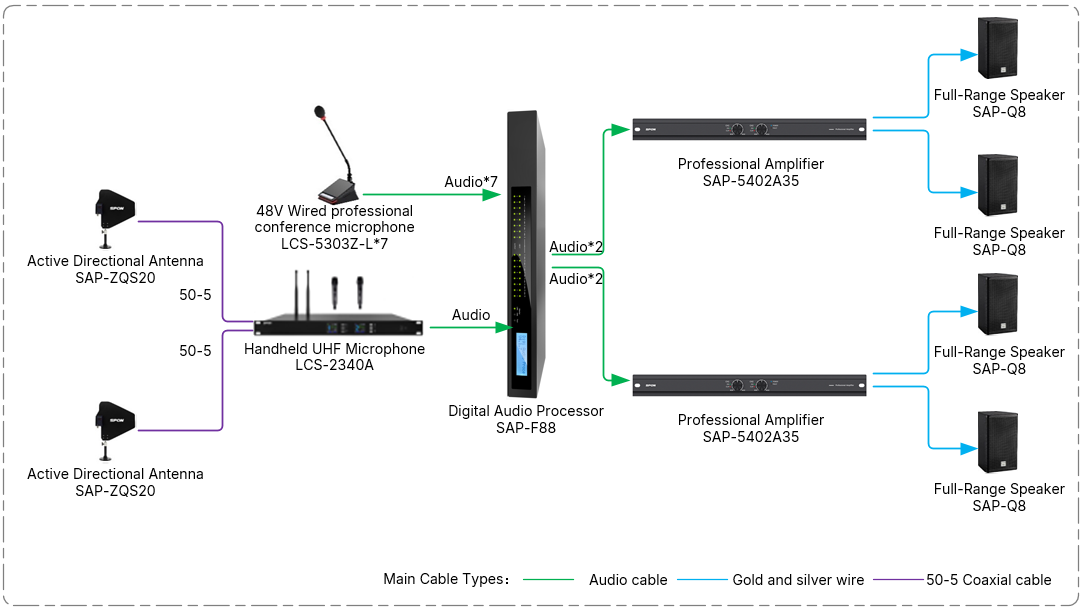

Solution

During court hearings, the microphone setup is carefully planned to make sure every speaker can be heard clearly. Judges, lawyers, witnesses, and defendants all use high-quality wired microphones to ensure clear and stable sound. Jurors are provided with U-band wireless microphones, which suit their special role during the trial. These wireless mics let jurors speak freely during discussions without being limited by cables. This setup makes it easier for them to share their opinions and take part in communication inside the jury box.

SAP-F1616H Digital Audio Processor

control the volume, eliminate those unwanted noise and echo, so that everyone in the courtroom can clearly hear every word, to ensure the smooth running of the trial.
Configuration of four SAP-Q8 wall-mounted speakers

using high-quality crossover and front inverted hole design, smooth frequency response, sound and image phase accuracy, with four SAP-QZ bracket for wall mounting, using two dual-channel amplifiers SAP-5402A35 for SAP-Q8 power bandwidth.

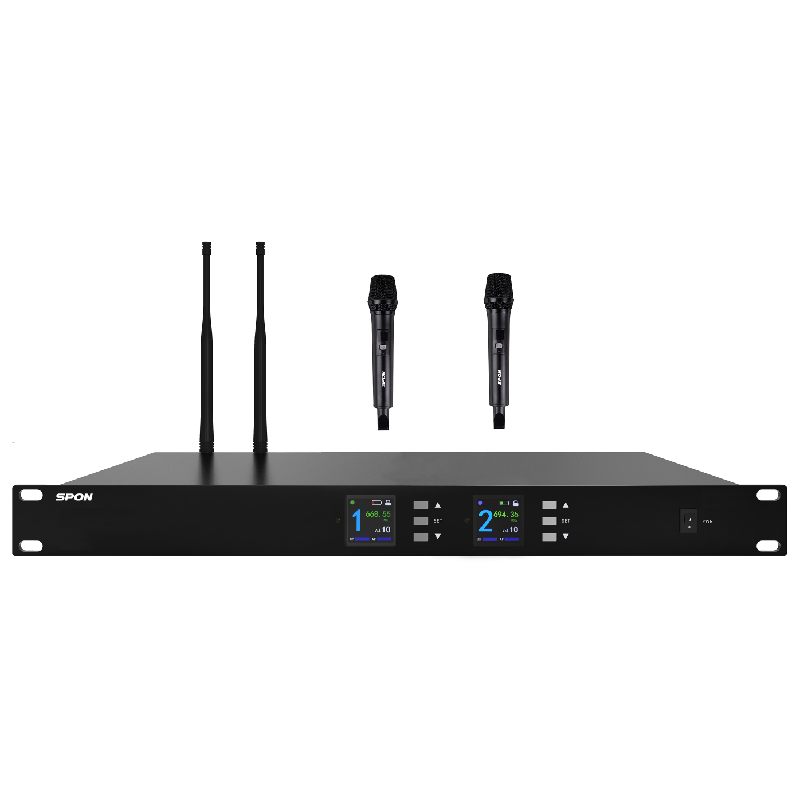

LCS-2340A Handheld UHF Microphone

jurors freely express their views without the constraints of cables, convenient for them to communicate and speak in the jury seat, and with SAP-ZQS20 for the expansion of signal reception.

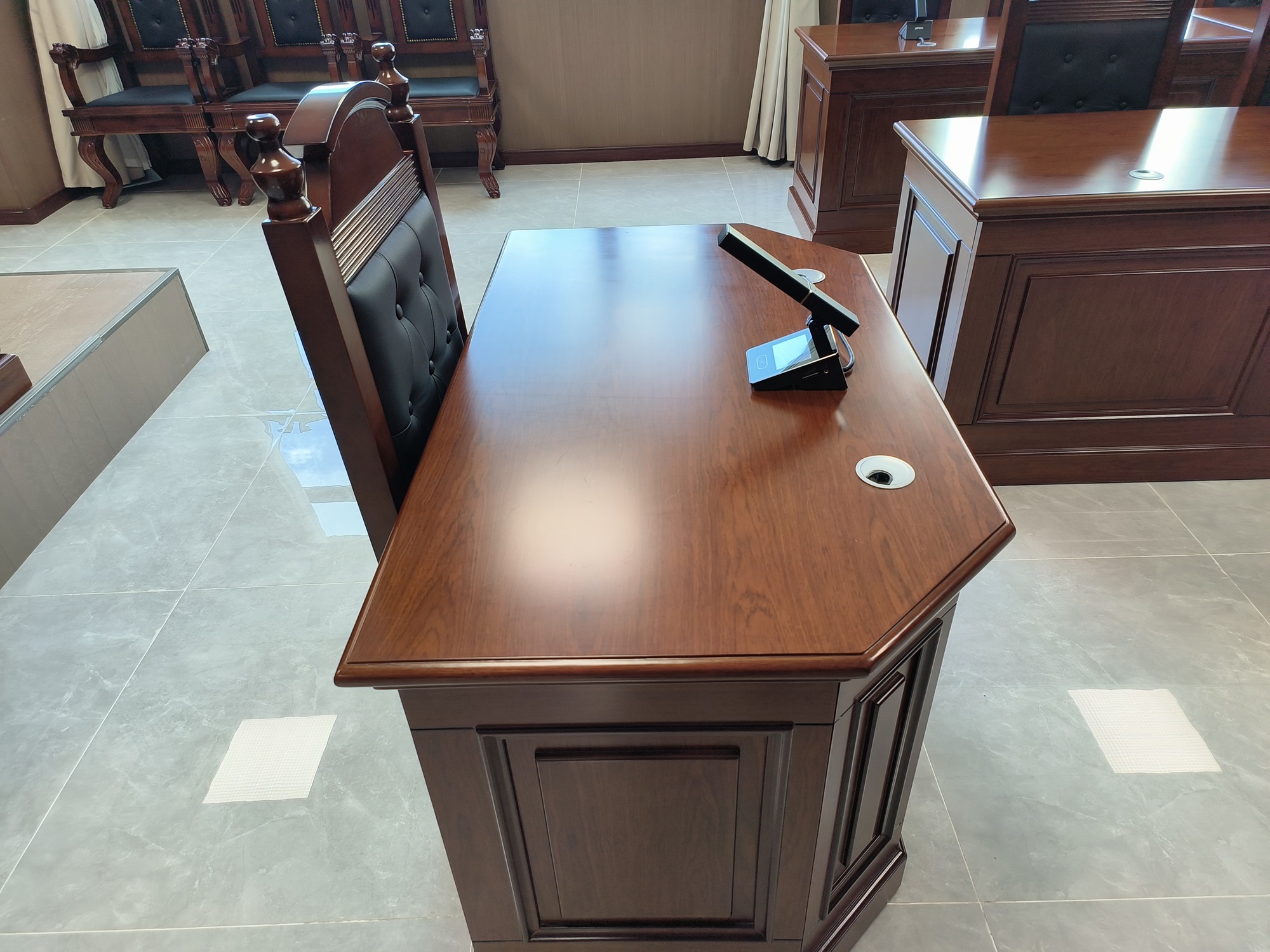

LCS-5303Z-L 48V Wired professional conference microphone

picks up the speeches of judges, lawyers, parties and witnesses etc. in high quality, amplifies and conveys the sound, thus providing clear and realistic audio support for courtroom trials.

Why Choose SPON?

SPON is a trusted professional audio manufacturer with proven solutions and many successful projects in the judicial field. Our courtroom audio systems have been tested and refined through years of real-world use. They are designed to solve common courtroom audio challenges, such as echo control and problems caused by multiple people speaking at once. By using SPON's mature technology, courts can greatly reduce technical risks, improve audio clarity, and lower the time and cost needed for staff training.
